Benefits:
- A reduction of around 90% in water consumption is normal when compared to constant flow immersion sterilisers. A similar reduction in the cost of purchasing, heating and disposing of this water is therefore to be expected.
- The built-in electric water heater means the water supply can be anything from cold 0°C/32°F up to 90°C/180°F. Automated temperature controls ensure that the water hitting the knife is always above 82°C/180°F.
- Heating the water within the steriliser is by far the least expensive approach since piping hot water around an abattoir is very inefficient.
- The Econoliser only heats the small volume of water needed to sterilise the knife, generally around 0.14 litres.

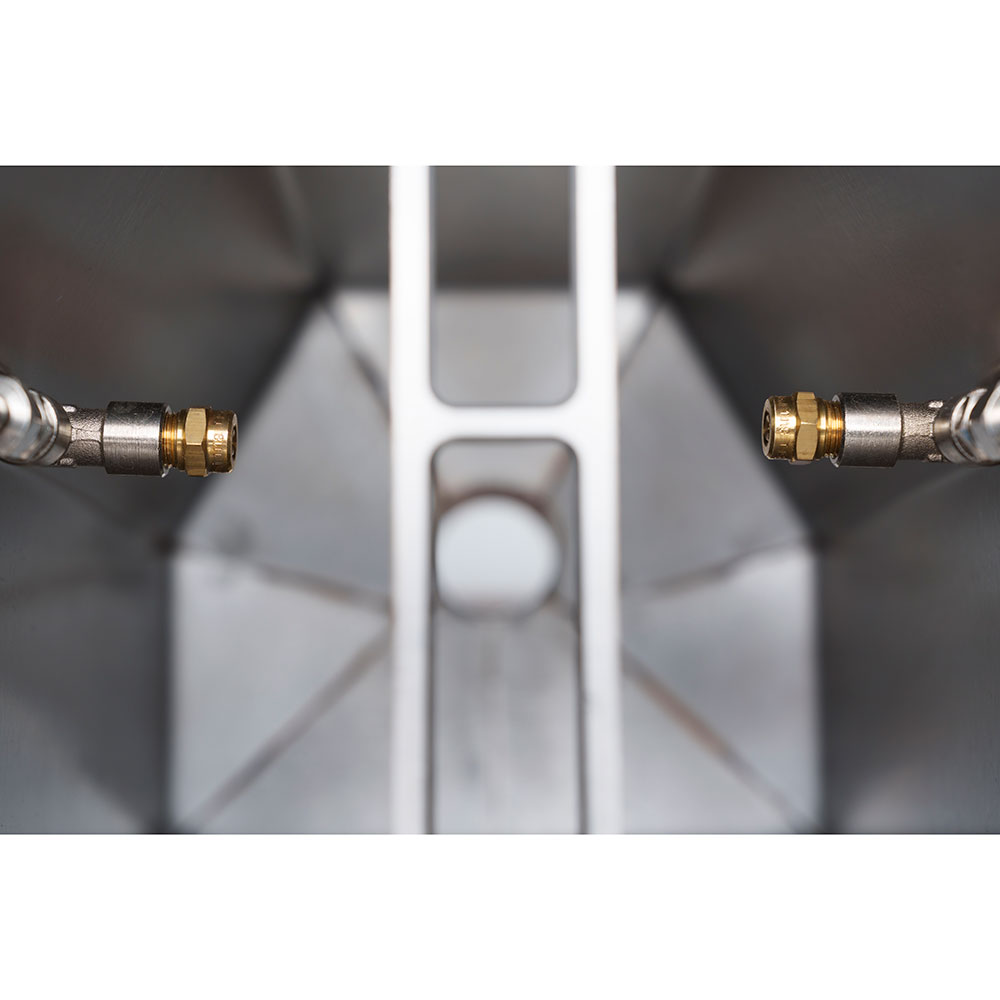

- The use of spray to sterilise the knife means that there is no bath of standing water to become contaminated with organic matter.
- Virtually no steam produced, to condense on overhead equipment and drip onto carcasses.
- No tank of hot water, zero risk of scalding and more comfortable to work beside.

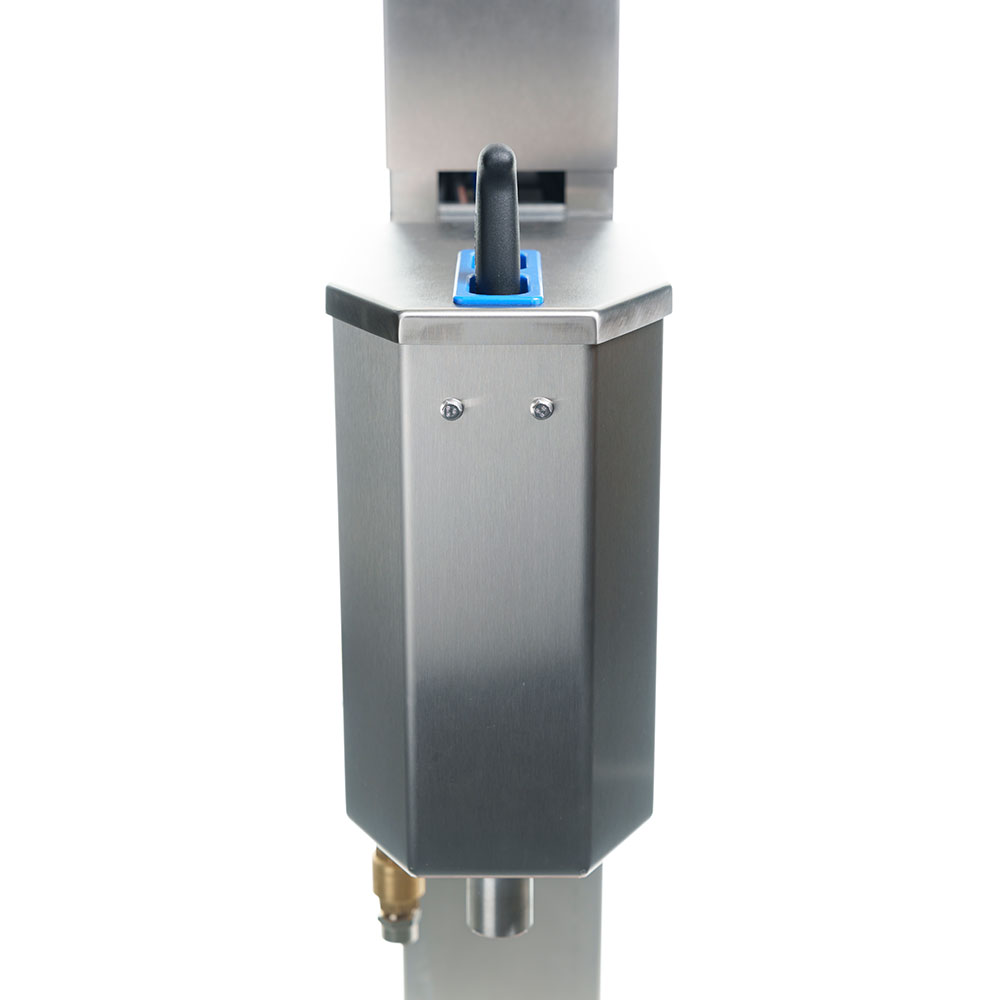

- Activated by insertion of the Knife into the unit. Safe and easy for operators.
- One-touch operation gives consistent results with any operator.
- New cassette design allows for ease of servicing, minimising down time.
- Comes standard with water level sensing, which purges any air that gets into the tank automatically, preventing the heater element overheating and the thermal overload tripping.
- New knives hold their edge longer because they aren’t sitting in a tank of hot water which anneals them.
- Low running costs means that electricity from a renewable source can now be used for sterilisation of knives and tools, helping users to reduce their dependence on fossil fuels and reducing their carbon footprint.
Options:

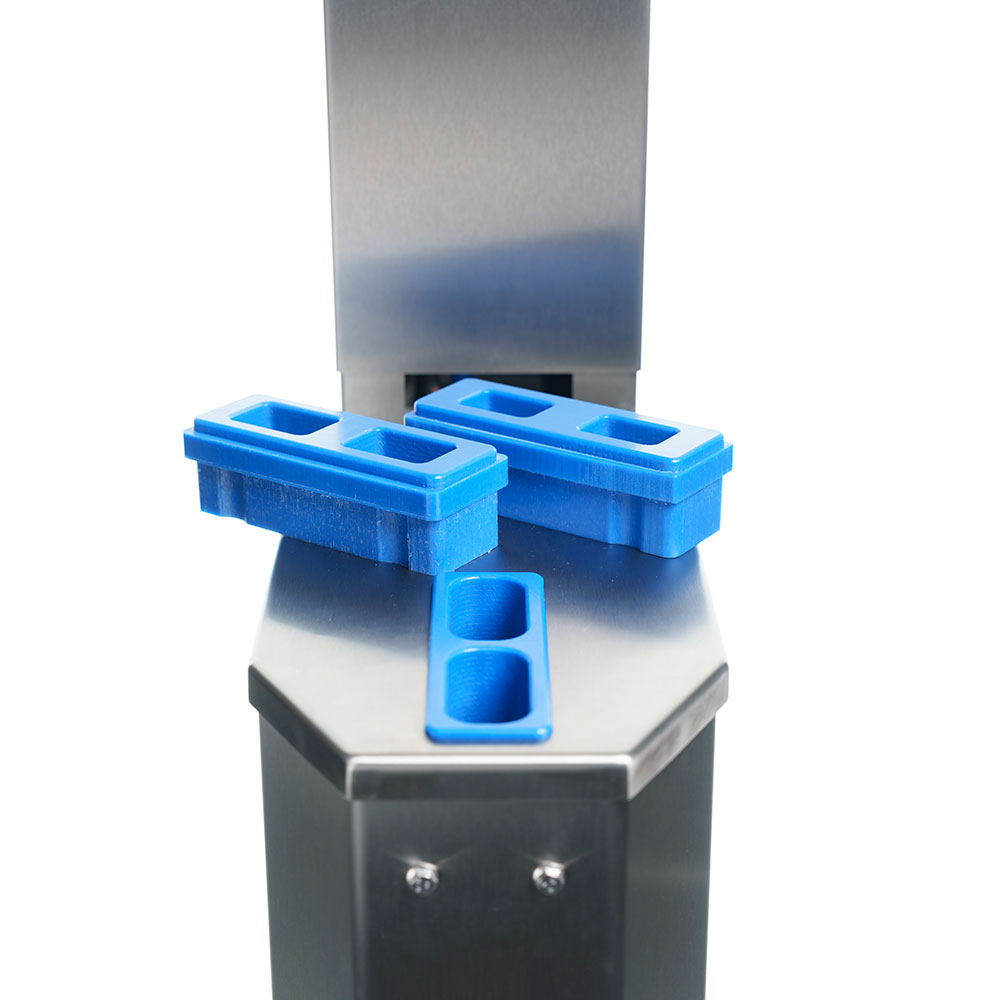

The top blue plastic opening is available in three sizes to suit the mix of knives used in different abattoirs around the globe. Please specify the correct opening size for your different stations. You can download our knife sizing guide here: link to knife sizing guide which needs to be uploaded.
If you use daggers in your process, we have developed a different opening for this. Please contact us.
Specifications:
- Mains Electric supply 230/240Vac 50/60Hz
- Max load : 11A
- Water supply: ≥82°C/180°F
- Dynamic Water Pressure min: 2.4Bar/35psi or higher
- Sterilisation Min water Flow rate: 4.2L/min or 1 Gal/min
- Sterilisation Cycle time Factory set: 2.5 – 4.5secs depending on species and line speed
- Sterilisation Water used per cycle: 0.075 – 0.140Ltrs or 2.3 – 4.75Fl oz
